| NdFeB External MagnetronMagnet Page | |||||||||||||||||||||||
| home | |||||||||||||||||||||||
| 730, 725, 2J53, etc Magnetrons | |||||||||||||||||||||||
| * http://physicsnostalgia.com/VaughnsPage/home.html | |||||||||||||||||||||||
| By Vaughn P. McDowell | |||||||||||||||||||||||
|
|||||||||||||||||||||||
|
|
||||||||||||||||||||||
| * 10NOV18 Notes | |||||||||||||||||||||||

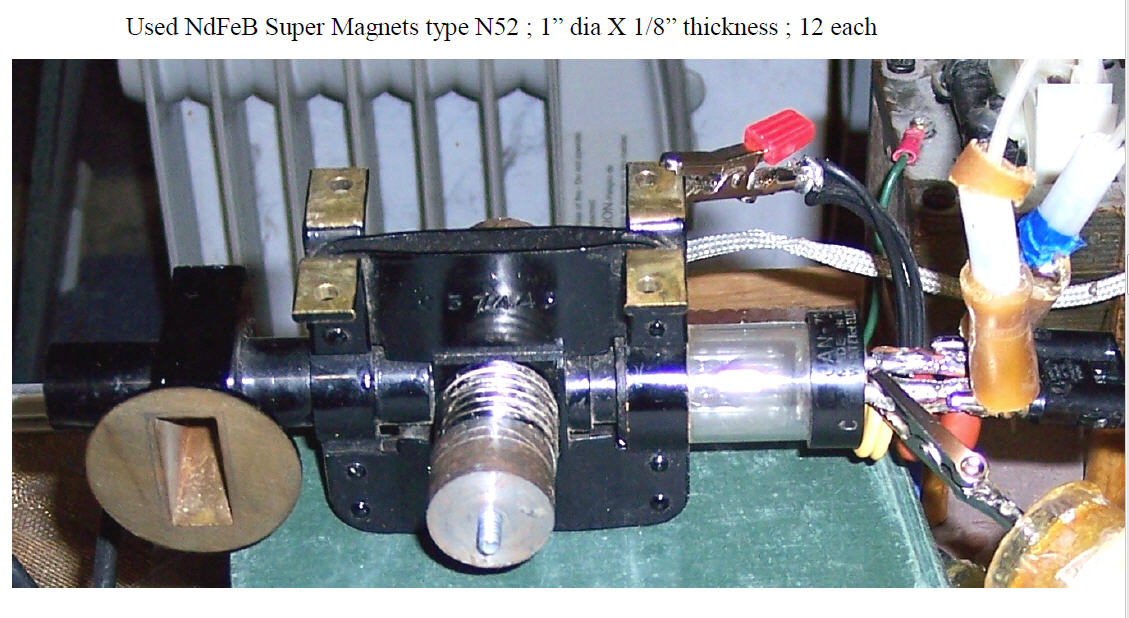

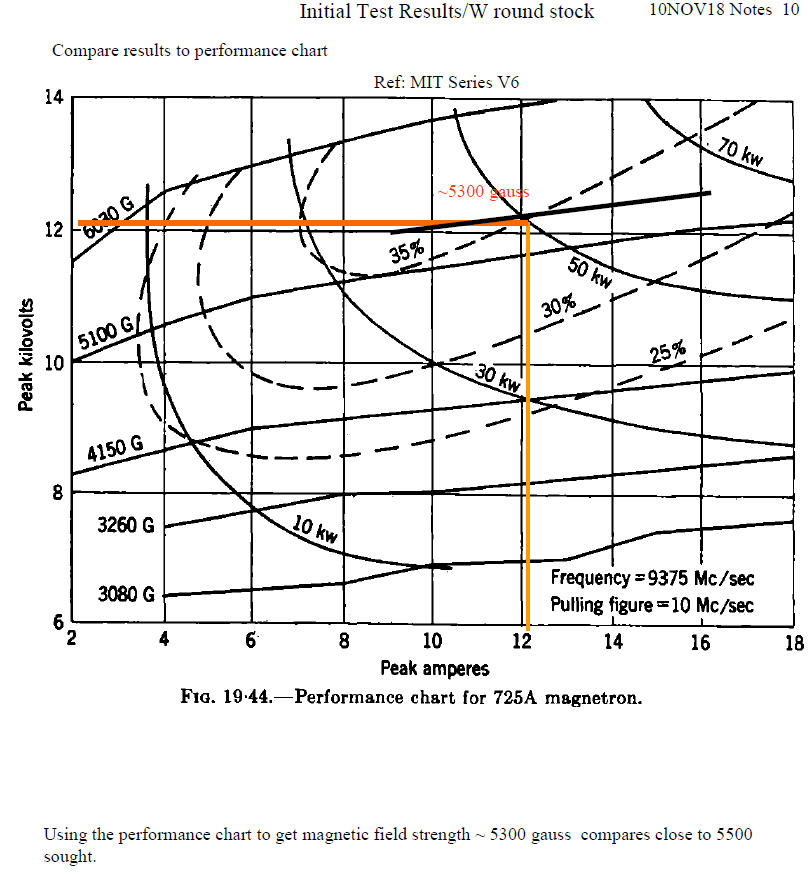

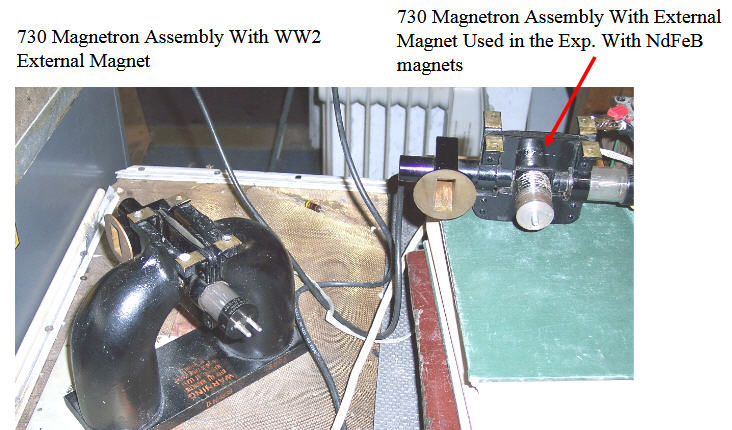

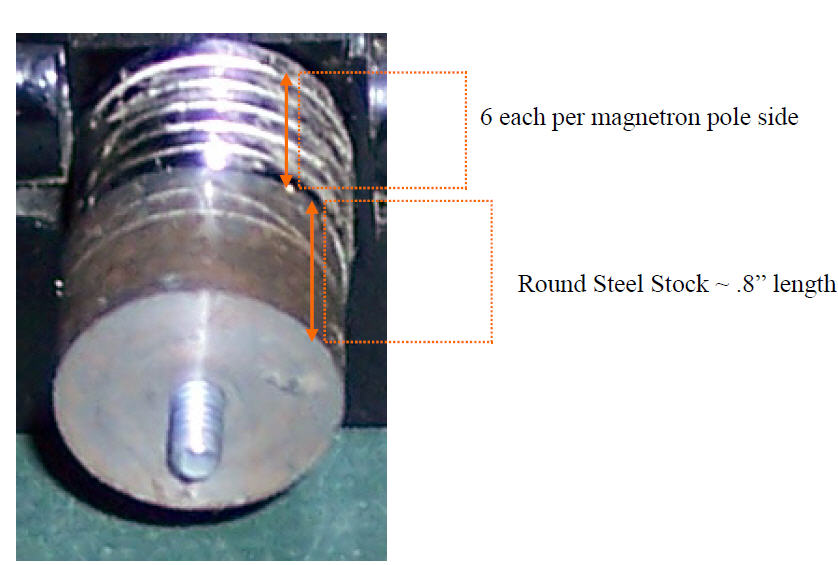

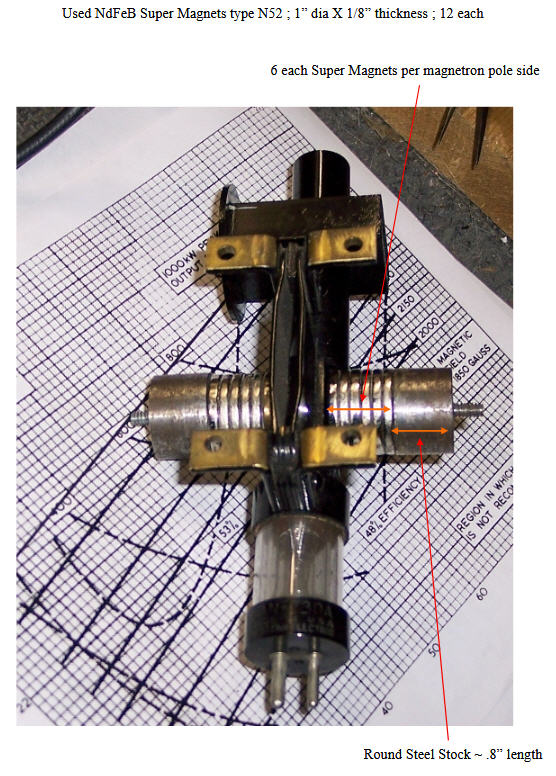

| This page highlights portions of the detailed PDF "10NOV18 Notes "; which demonstrates that NdFeB external 730 / 725 type magnetron magnets can be successfully used ; see photos below: | |||||||||||||||||||||||
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
